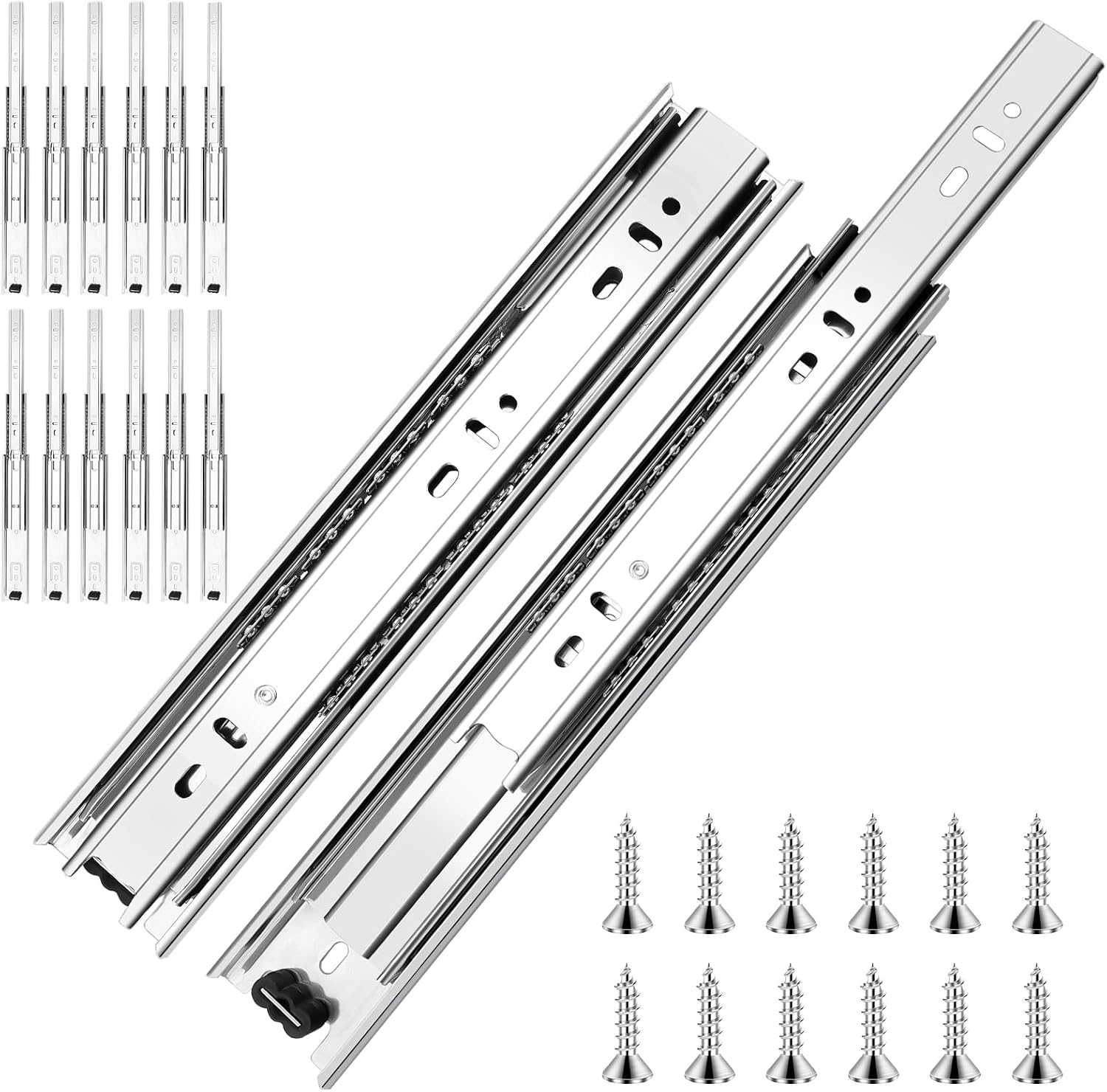

Six pairs of side-mount runners at 16 inches, rated to carry 100 lb per pair and travelling to full extension so the back of the drawer clears the carcass. Six pairs covers a run of kitchen base units in a single order, which matters because mixing slide brands within one kitchen leaves drawers sitting at different heights.
Specifications
- Length: 16 inch
- Quantity: 6 pairs, 12 pieces
- Load rating: 100 lb per pair
- Mounting: side mount

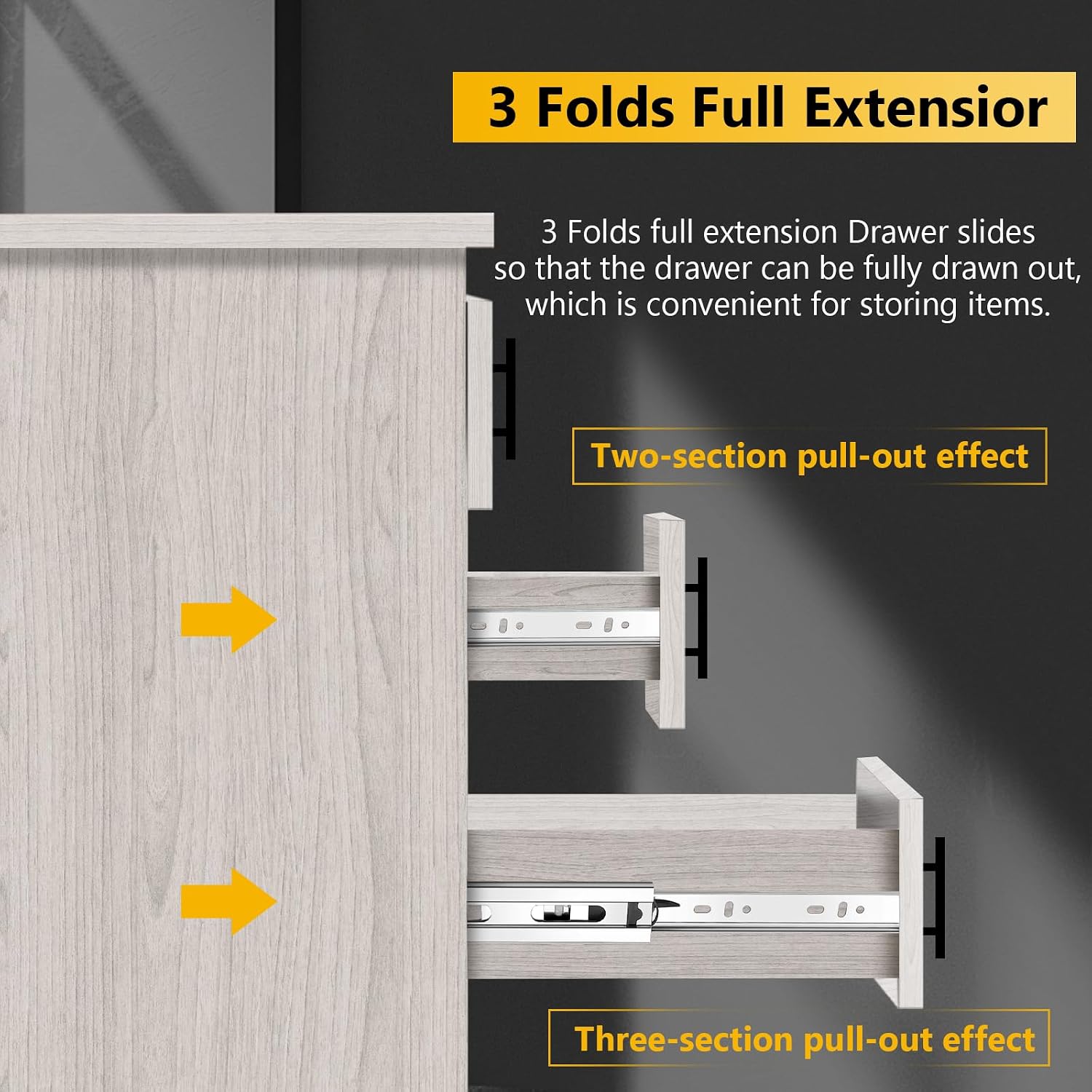

- Travel: full extension
- Mechanism: ball bearing
Care & Use
Measure the cabinet depth, not the drawer box: the slide has to fit inside the carcass with the drawer front clear. Fit both runners at the same height using a spacer or a marked batten, since a few millimetres of difference is what makes a drawer bind. Keep the raceways free of dust and do not oil them; ball bearing slides run dry.
