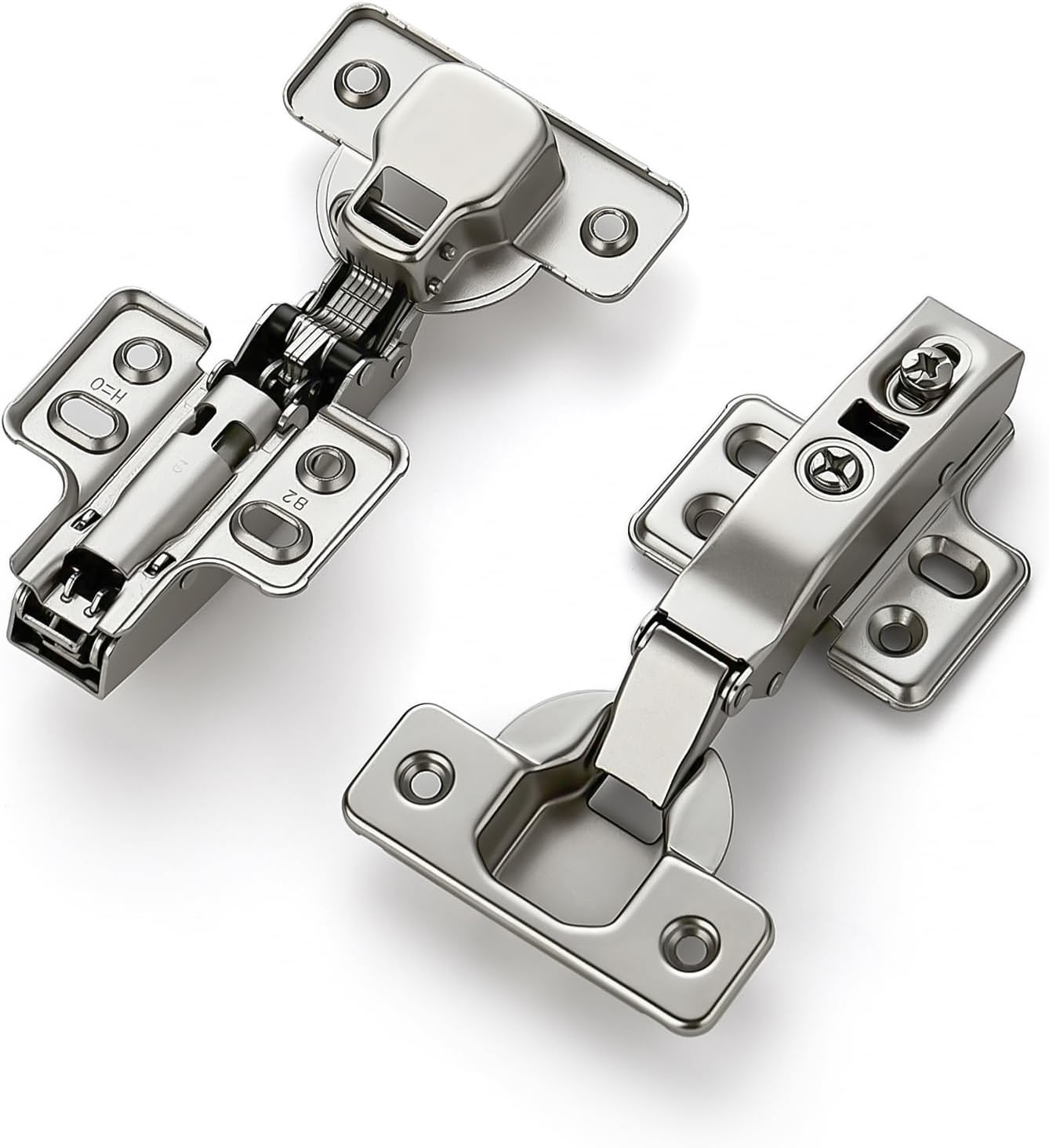

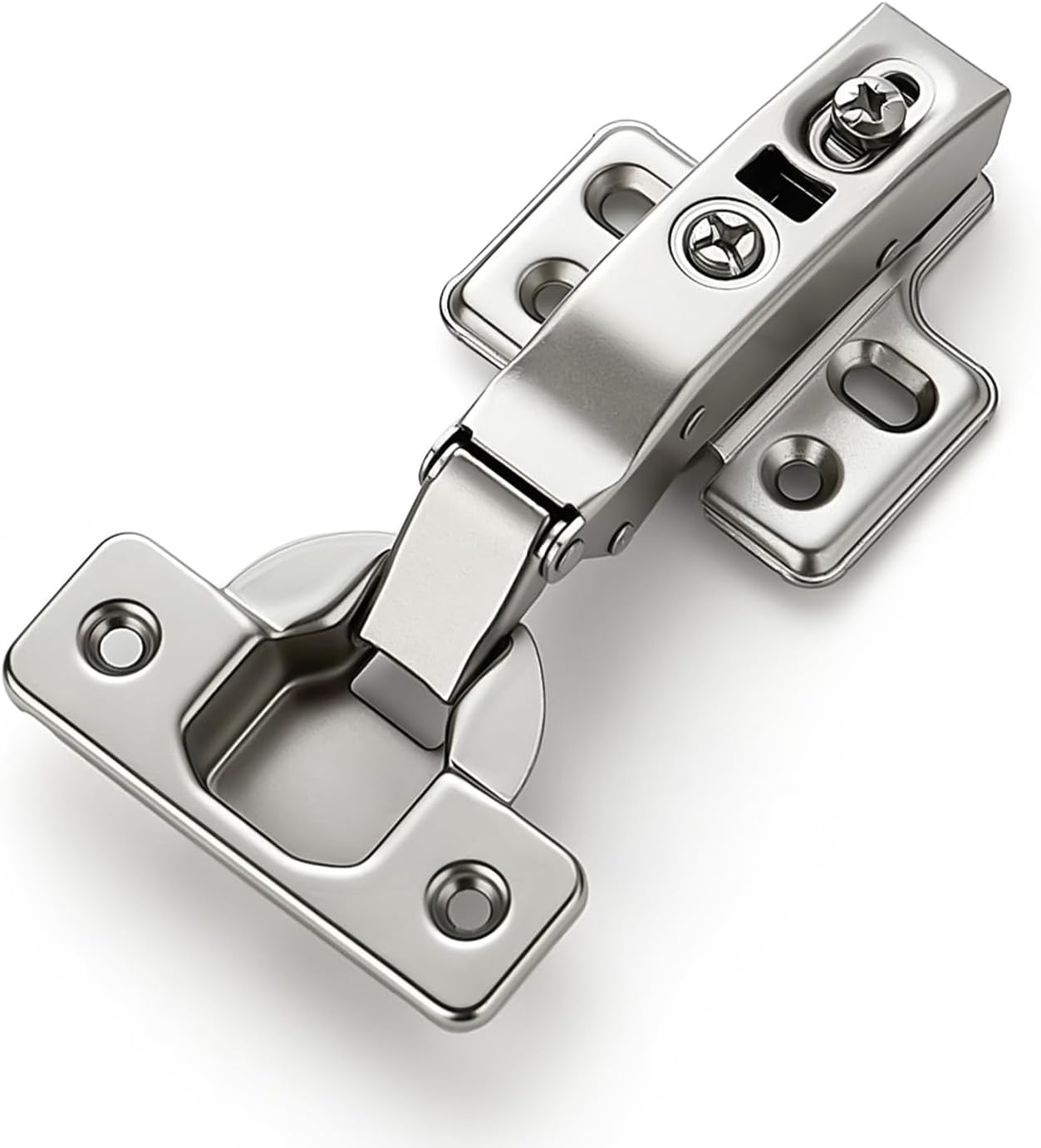

Ten concealed hinges — five pairs — in the European pattern, for full overlay doors that cover the cabinet side completely. The damper is built into the hinge arm rather than added on, so nothing protrudes into the cabinet interior. Ten hinges suits five doors, which is the usual count for a bank of wall units, and the European pattern is what most imported flat-pack carcasses are drilled for.
Specifications

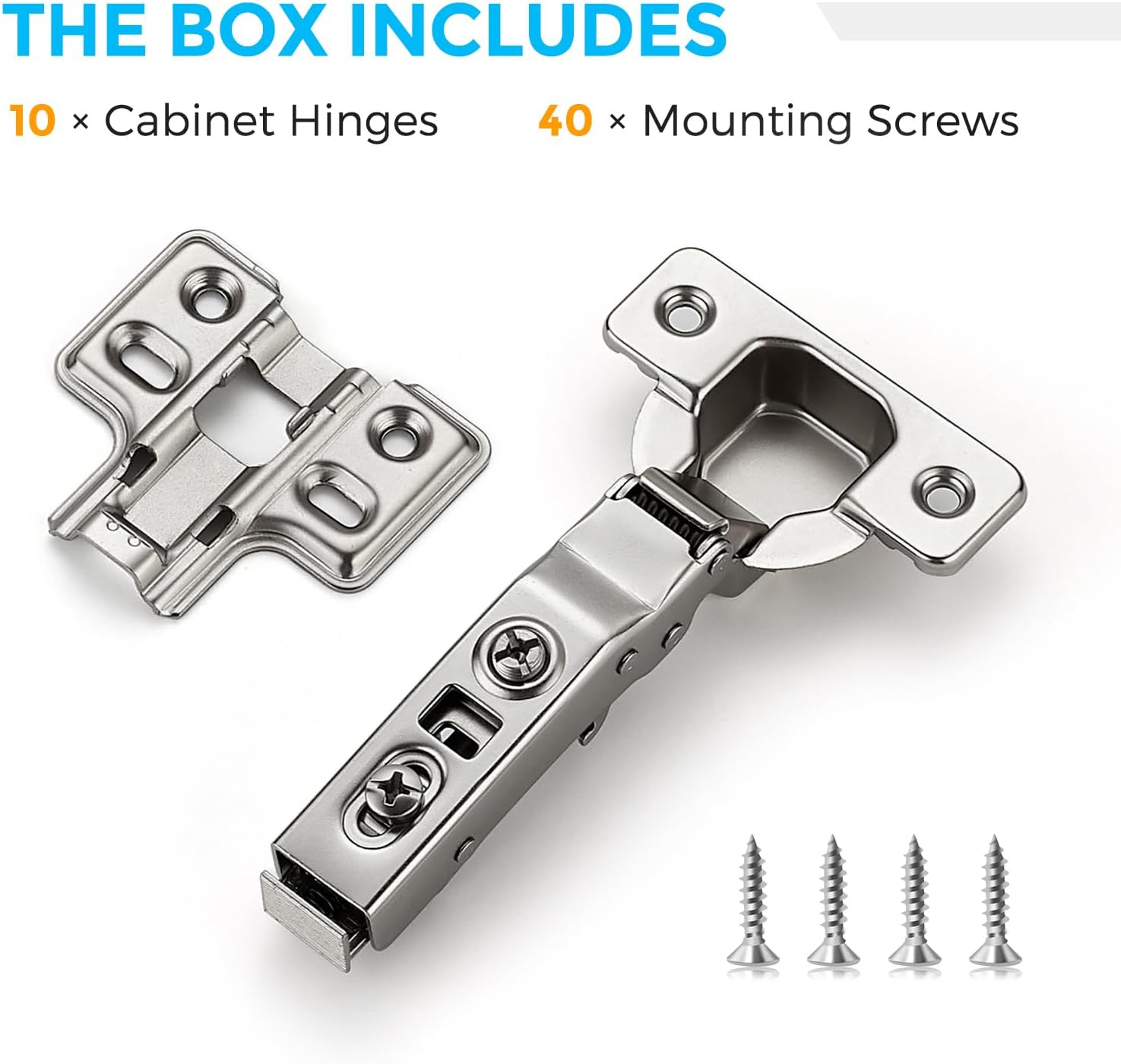

- Quantity: 10 hinges, 5 pairs
- Overlay: full overlay
- Type: European concealed

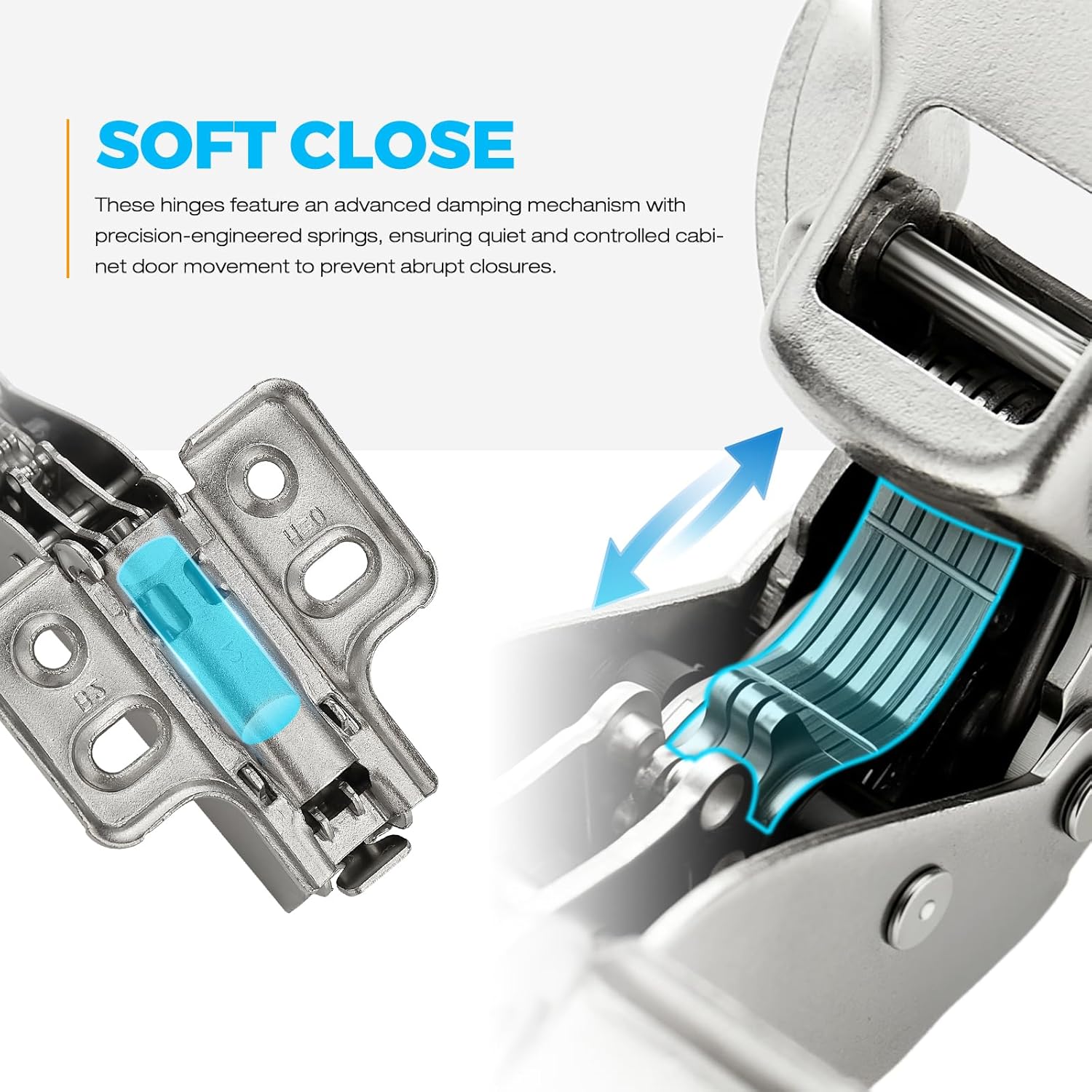

- Action: soft close
- Adjustment: adjustable mounting plate
Care & Use
Full overlay means the door sits over the cabinet side; half overlay means two doors share one side. Ordering the wrong one gives a door that either fouls its neighbour or leaves a gap. Two hinges suit a door up to about 900 mm tall; taller or heavier doors want three.
