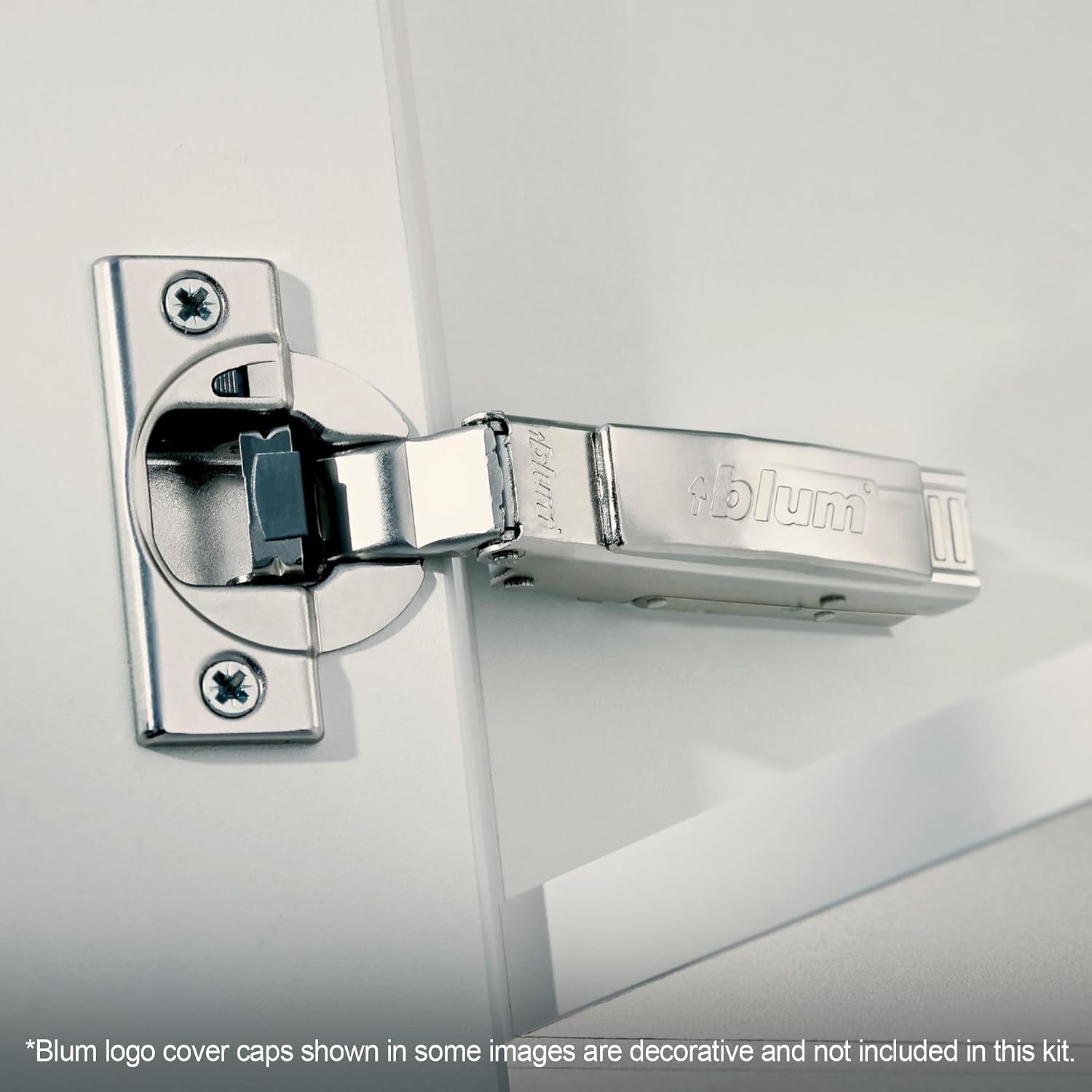

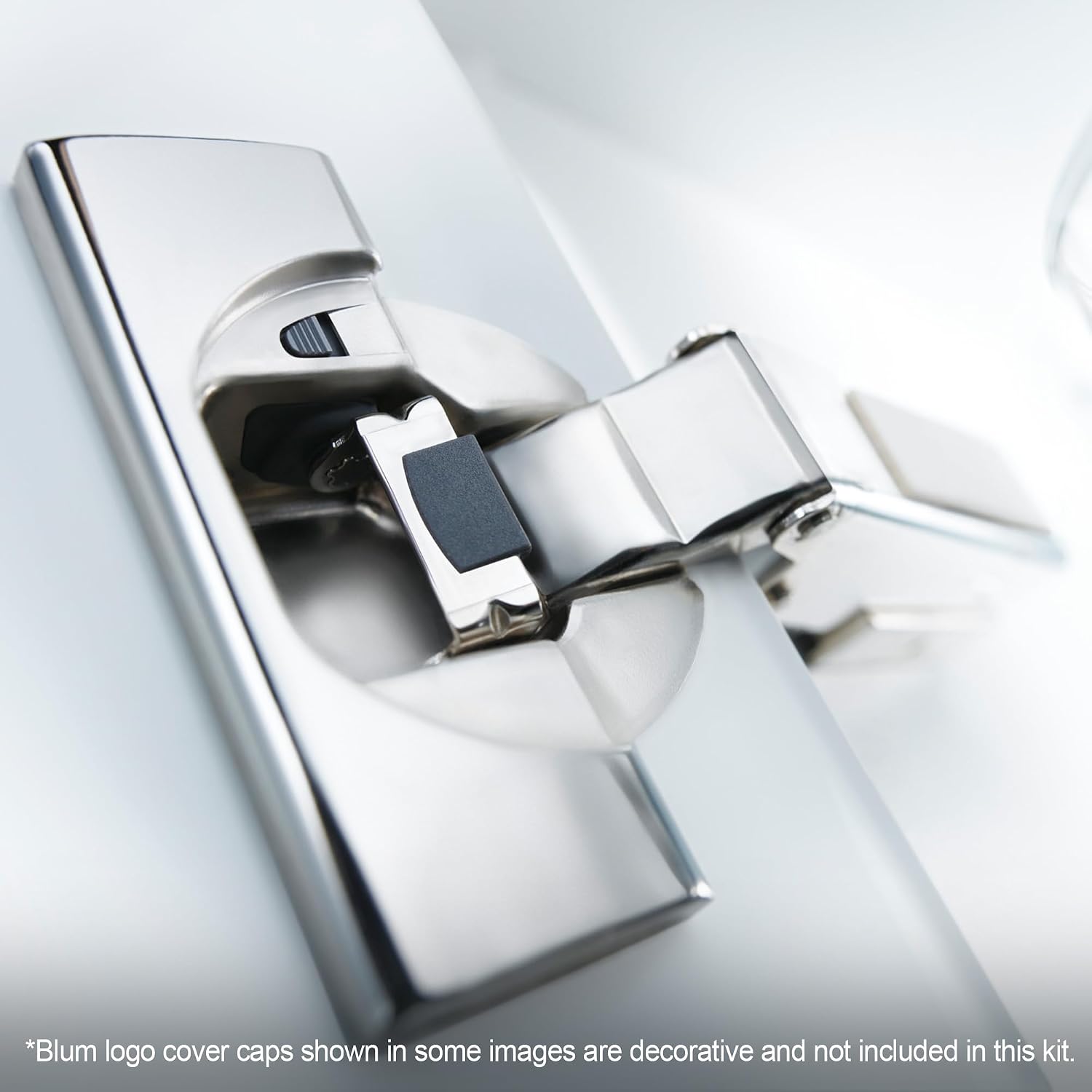

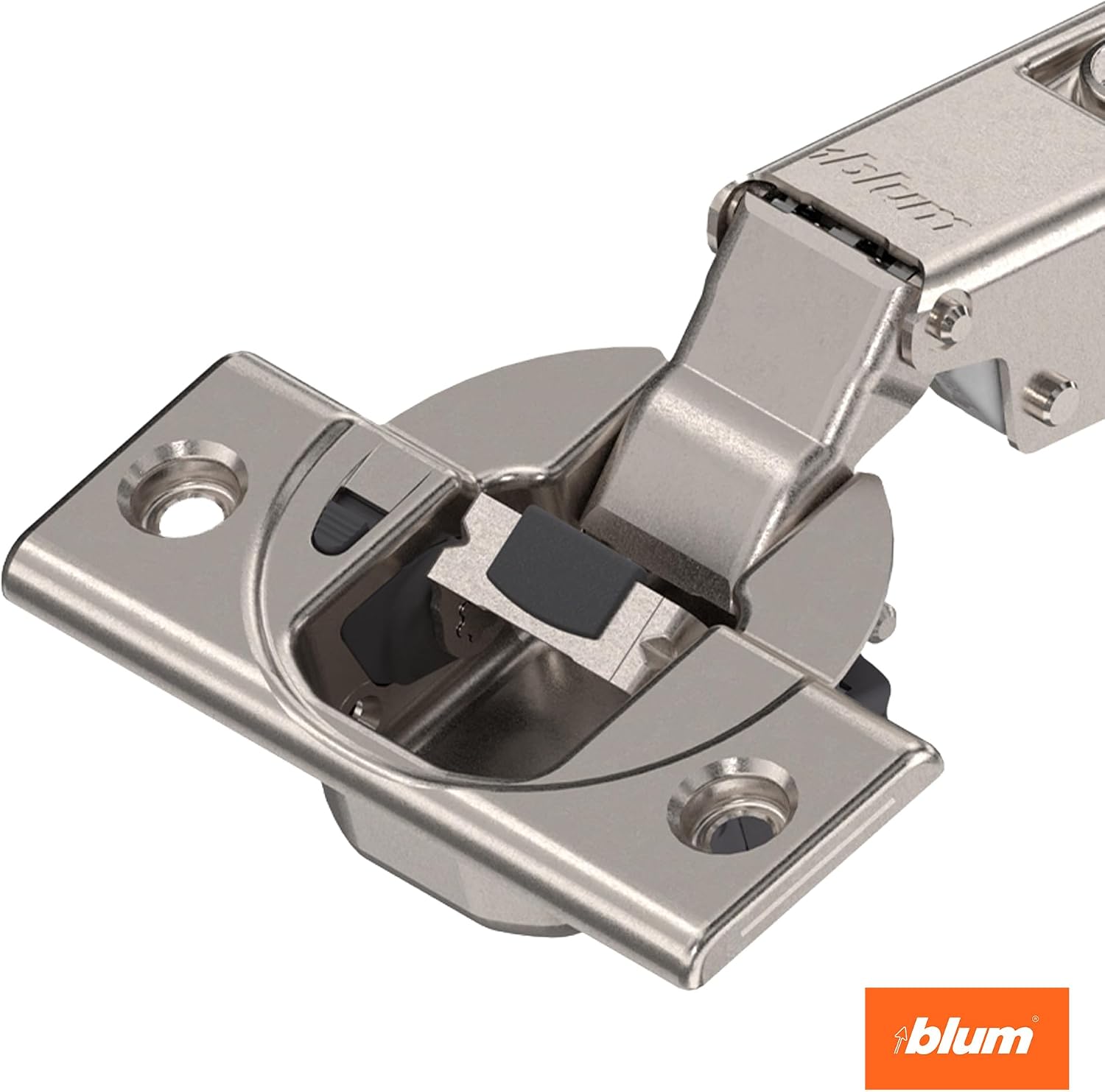

Four complete hinge kits for frameless cabinets, full overlay, opening to 110 degrees, each with the mounting plate and screws in the box. Frameless carcasses need a different mounting plate height from face-frame work, and a kit removes the guesswork. Four kits covers four doors, which is a bank of wall units or a small run, and each kit arrives complete so nothing has to be matched up afterwards.
Specifications
- Quantity: 4 kits
- Cabinet type: frameless
- Overlay: full overlay
- Opening angle: 110 degrees
- Included: mounting plates and screws
- Action: soft close
Care & Use
Frameless cabinets are the flat-pack standard; face-frame construction is more common in older or bespoke joinery. Check which you have before ordering. The 35 mm cup bore should be 3 to 5 mm from the door edge; too close and the door will not clear the carcass.
