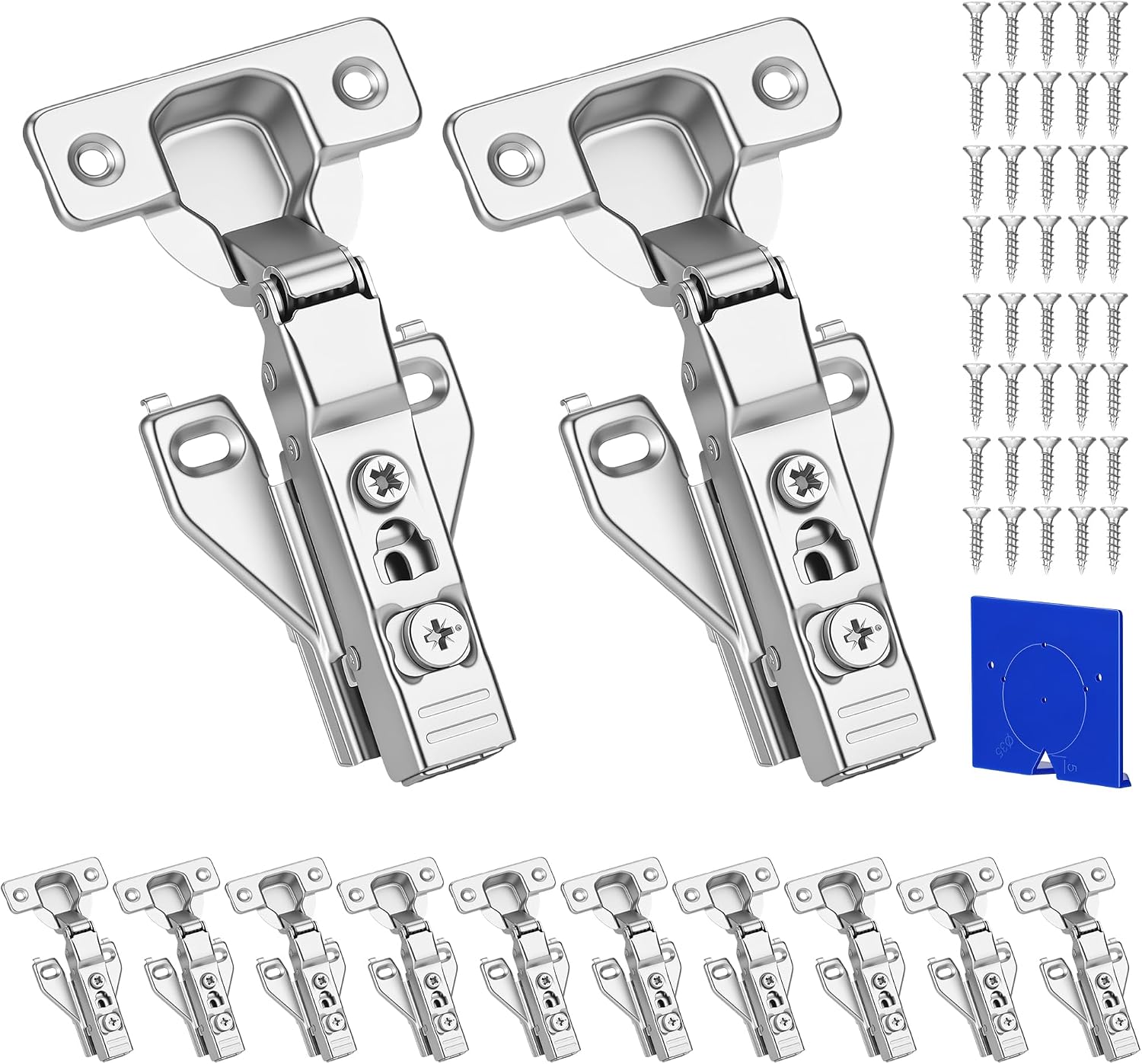

Twelve concealed hinges for half-inch overlay doors, opening to 105 degrees with a soft close damper. The mounting plate adjusts in three directions, which is how a run of doors is brought into line after they are hung rather than by re-drilling. Twelve is six doors’ worth at two hinges each, which covers a small kitchen run or the upper cabinets on their own without buying a fifty-pack.
Specifications

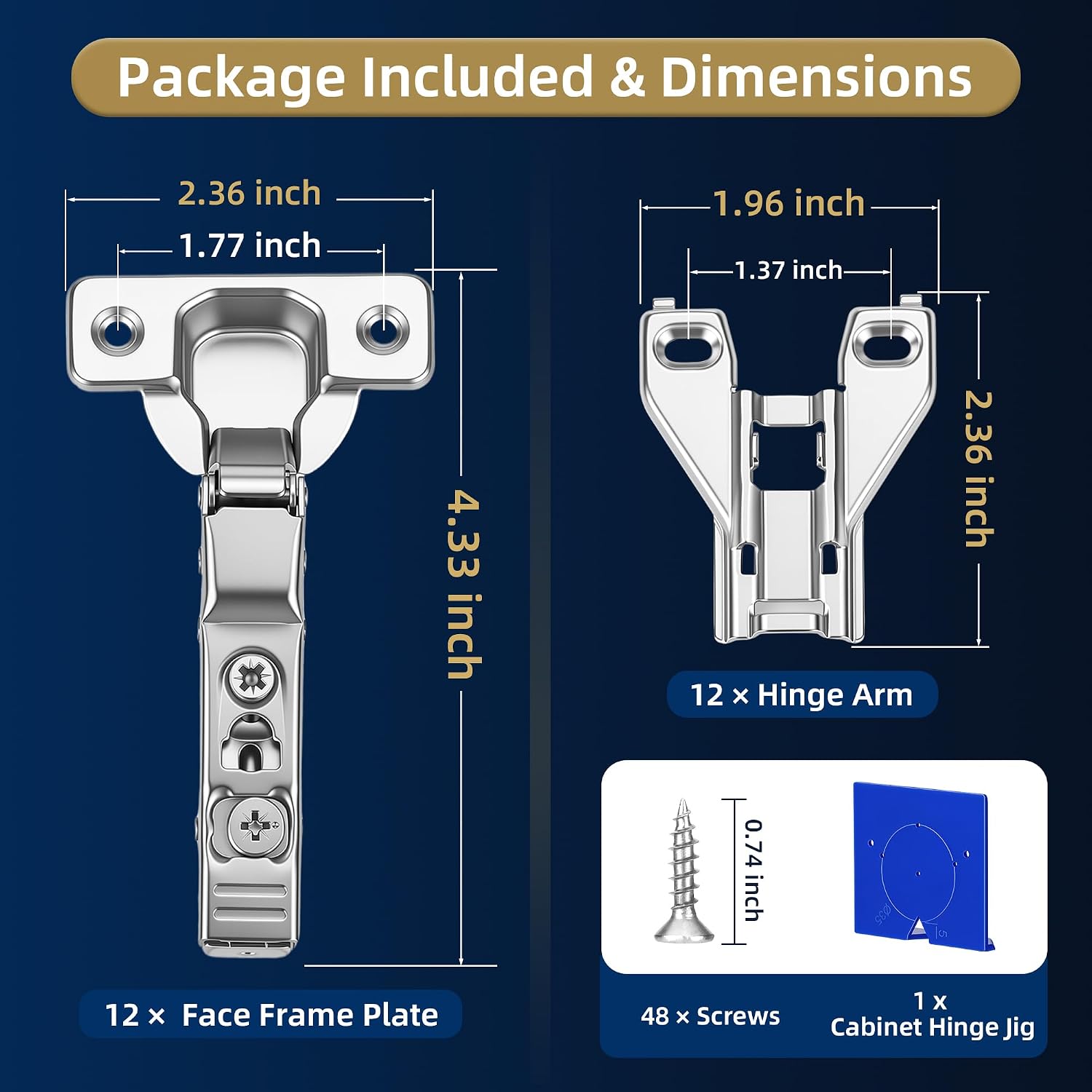

- Quantity: 12 hinges
- Overlay: 1/2 inch
- Opening angle: 105 degrees
- Adjustment: 3D — height, depth and side
- Fitting: clip-on, concealed

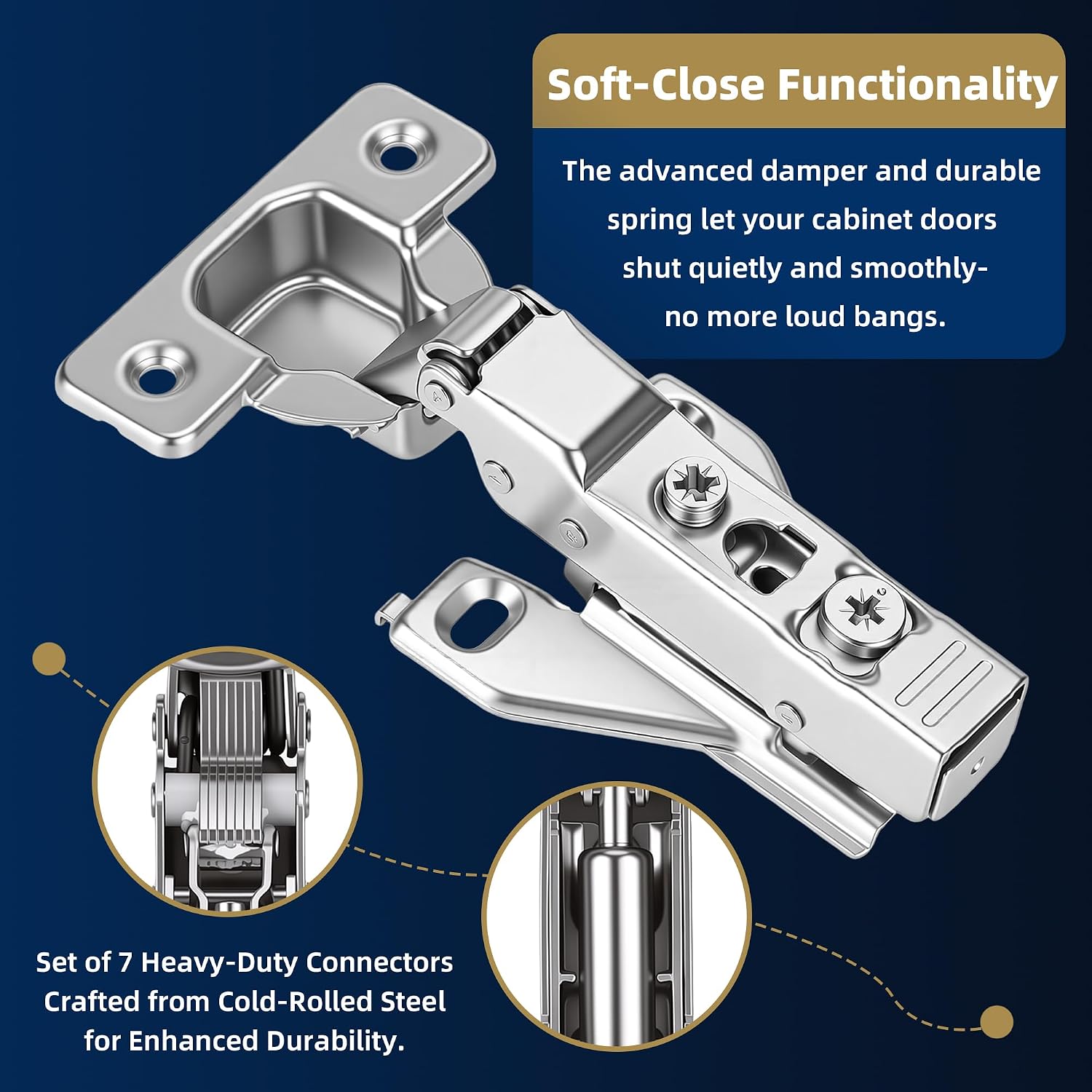

- Action: soft close
Care & Use

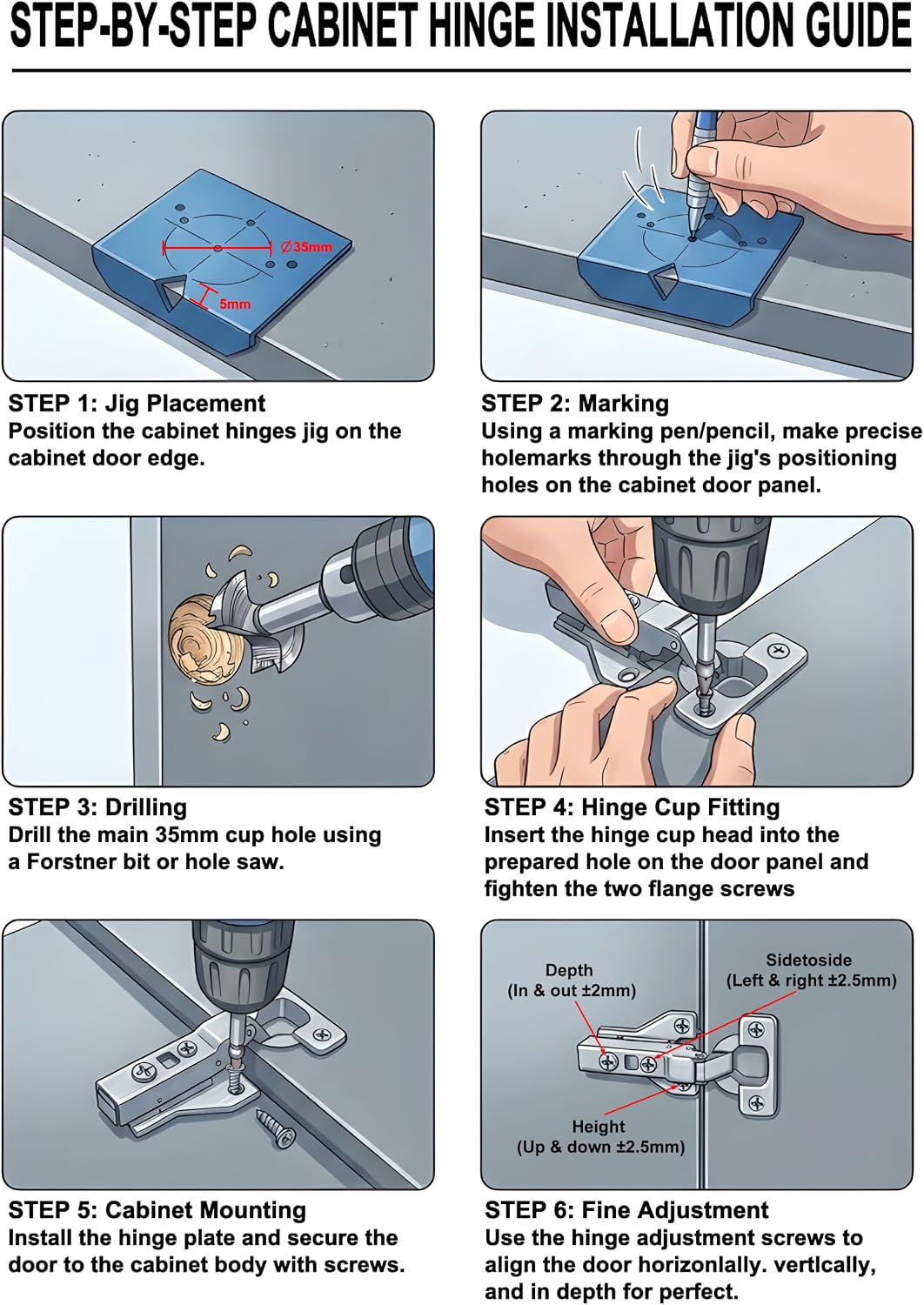

Check your overlay before ordering — the amount the door covers the frame decides which hinge fits, and half-inch is not universal. Adjust side-to-side first, then height, then depth; doing it in another order means going back over the first two. The cup bore is 35 mm.
